温度控制器

更新:2019-12-2 20:10:05      点击:
  • 品牌   扩杰
  • 型号   WK
  • 描述

    ...

产品介绍

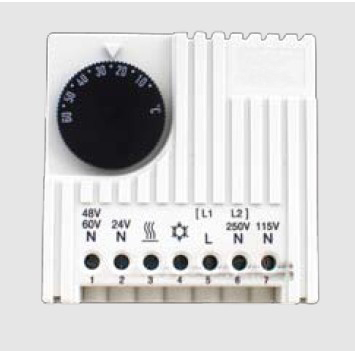

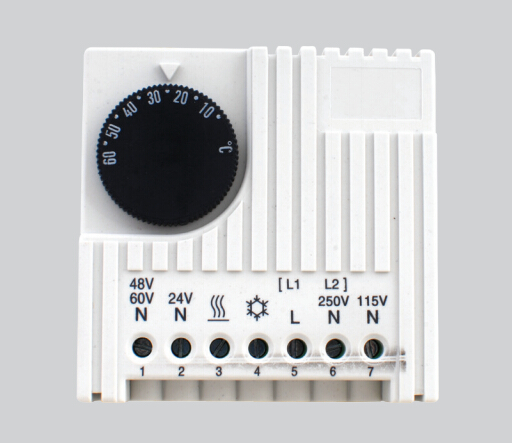

控制柜内部温度控制器
Control cabinet inside dual temperature controller




技术说明:
双金属传感器作为热反馈的热敏装置。
触点设置:单极转换触点(变换触点)作为瞬时开关元件。
允许的触点负荷:
K1.5-3(加热) / K1.5-3 (heating)
交流10(4)1>A / AC 10(4)1>A
直流 = 30w / DC = 30w
调节范围+5℃到+60℃
重量大约105g
尺寸71*71*33.5mm
开关差约为1k±0.8k
节省时间的链接技术,也就是说仅一个型号就可适用于24到230v。
安装灵活,可安装在垂直或水平的35mm支撑导轨,根据EN50 022以及应附带的适配器扣在NS/35-ES机柜的型材上。
侧板:1.5mm
立柱:铝合金型材
特别适用于控制过滤器风扇、加热器和热交换器,作为信号发生器这一温度调节器也适用于监视控制柜内部温度。
Is used  to control a filter  fan, heater and heat exchanger. As a signal generator, this temperature control is also used to monitor temperature in a control cabinet.

技术说明
Technical description

● 双金属传感器作为热反馈的热敏装置。
The dual-metal sensor is used as a heat-sensitive device for heat feedback.
● 触点设置:单极转换触点(变换触点)作为瞬时开关元件。
Contact setting: The single-pole switchover contact (changeover contact)is used an instantaneous switch element.
● 允许的触点负荷 / Allowable contact load :
K1.5-3(加热) / K1.5-3 (heating)
交流10(4)1>A  / AC 10(4)1>A
直流 = 30w  / DC = 30wK1.5-4(冷却) /  K1.5-4(Cooling)交流5(4)1>A / AC 5(4)1>A
直流 = 30w  / DC = 30w   (1>)=感性负荷在cosφ=0.6时 / (1>) = inductance load at cosφ=0.6
● 调节范围+5℃到+60℃ / Adjustment range: +5℃ to +60℃
● 重量大约105g  / Weight: about 105g
● 尺寸71*71*33.5mm / Dimensions: 71*71*33.5mm
● 开关差约为1k±0.8k / Switch difference: about 1k±0.8k
● 节省时间的链接技术,也就是说仅一个型号就可适用于24到230v。
Time saving link technology, that is, only one model can be applicable to 24 ~230V
● 安装灵活,可安装在垂直或水平的35mm支撑导轨,根据EN50  022以及应附带的适配器扣在NS/35-ES机柜的型材上。
   Flexible installation. The temperature controller can be installed  on a 35mm vertical or horizontal guide rail and be fastened on the NS/35-ES cabinet section according to EN50 022 and the accessary adaptor.

订货号/ Order No.

工作电流(A)额定/最大 / Operating current (A) rating/maximum

WK001

230/115/60/48/24v(AC)
60/48/24v(DC)
