YJ摇架柜

更新:2015/11/3 20:47:16      点击:
  • 品牌   扩杰
  • 型号   YJ
  • 描述

    ...

产品介绍

产品特点 Features of product
● 摇架设计用于安装482.6毫米(19″)设备。
● 顶板可以移去,侧板可以拆卸,更易于工作的便捷性
● 门板离地面高,约25mm,确保开门灵活顺畅

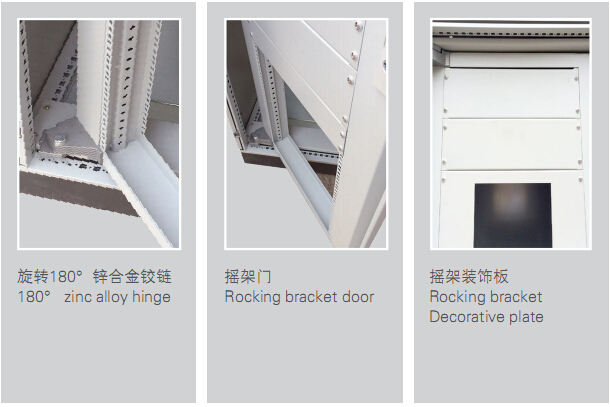

● 钢制旋转摇架,钢板折弯焊接而成。前装饰板用螺钉固定在框架上。边框右侧配有门锁系统。
● 独特的九折型材整体焊接而成的主体框架不但确保柜体的高强度而且使柜体的防护等级达到IP54
● 特殊的门板方管加强系统可以用螺丝固定在门板上,便于拆卸
● 框架上密布的25mm 间距模数孔确保安装的灵活性、通用性
● 镀锌安装板可以利用塑料滑块通过导轨从正面推入柜内,且两边有U型折边使安装板更牢固和更便于搬运
●  Large swing frames are designed for installing 482.6 mm(19″)
●  The top plate is removable and the side plate is demountable,making work easier and simpler
●  Ground clearance of door plate is sufficient, about 25mm, ensuring flexibility and smoothness of door opening.
●  Torsionally stiff frame, welded from rectangular tube and 6-times folded support section. The side  trim panels are screw-fastened to  the  frame. The  righthand  trim panel has a handle strip at  the side and is equipped with a locking rod system.
●  IP54The main body frame specially made of nine-fold section by means of whole welding not only ensures high strength of cabinet body but also lets the protection grade of cabinet body reach IP54.
●  Special door plate square pipe reinforcement system can be fixed on the door plate with screws, easy for dismantlement.
●  Module holes densely distributed at 25mm spacing on the frame guarantee the flexibility and universality of installation
●  The mounting plate can be pushed into the cabinet from the front through guide rail by making use of plastic sliders. U-shape folded edges at the two sides facilitate fastening and handling of the mounting plate.


序号

订货号(RAL 7035)

订货号(RAL 7032)

宽度(mm)

高度(mm)

深度(mm)

1

YJ801660500

YJ801660600

800

1600

600

2

YJ801680500

YJ801680600

800

1600

800

3

YJ801690500

YJ801690600

800

1600

900

4

YJ801860500

YJ801860600

800

1800

600

5

YJ801880500

YJ801880600

800

1800

800

6

YJ801890500

YJ801890600

800

1800

900

7

YJ802060500

YJ802060600

800

2000

600

8

YJ802080500

YJ802080600

800

2000

800

9

YJ802090500

YJ802090600

800

2000

900

10

YJ802260500

YJ802260600

800

2200

600

11

YJ802280500

YJ802280600

800

2200

800

12

YJ802290500

YJ802290600

800

2200

900
