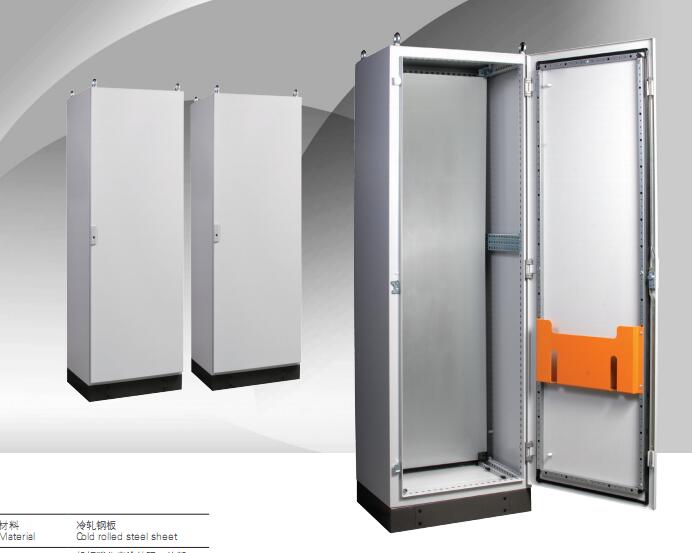

ES控制柜

更新:2015/11/3 20:23:33      点击:
  • 品牌   扩杰
  • 型号   ES
  • 描述

    ...

产品介绍

产品特点 Features of product
● 独立式电柜,不适宜并柜使用
● 门板离地面高,约25mm,确保开门灵活顺畅

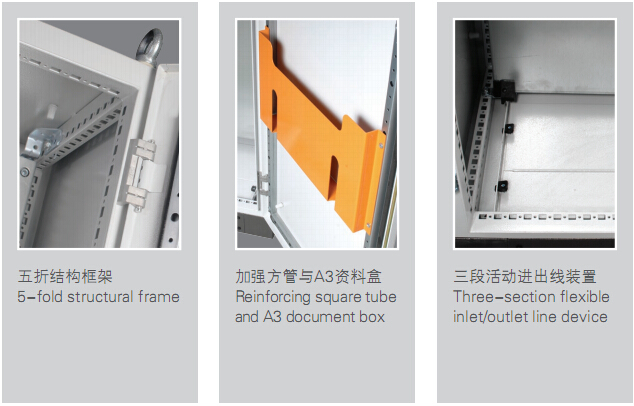

● 独特的五折型材整体焊接而成的主体框架不但确保柜体的高强度而且使柜体的防护等级达到IP55
● 特殊的门板方管加强系统可以用螺丝固定在门板上,便于拆卸
● 框架上密布的25mm 间距模数孔确保安装的灵活性、通用性
● 镀锌安装板可以利用塑料滑块通过导轨从正面推入柜内,且两边有U型折边使安装板更牢固和更便于搬运
● Stand-alone electric cabinet,  inapplicable  for cabinet incorporation
● Ground clearance of door plate  is sufficient, about 25mm, ensuring flexibility and smoothness of door opening.
● IP55Unique main body frame integrally welded with 5-fold sections ensures high strength and IP55 of cabinet body
● Special door plate square  tube  reinforcing system can be fixed on door plate by screws for easy disassembly
● Modular holes with a spacing of 25mm on  the  frame ensures flexibility and universality of installation
● The mounting plate can be pushed  into  the cabinet by plastic slide  through  rail; U  flanges on both sides allow firmer mounting plate and easier handling


序号

订货号(RAL 7035)

订货号(RAL 7032)

宽度(mm)

高度(mm)

深度(mm)

1

ES601640500

ES601640600

600

1600

400

2

ES601650500

ES601650600

600

1600

500

3

ES601840500

ES601840600

600

1800

400

4

ES601850500

ES601850600

600

1800

500

5

ES602050500

ES602050600

600

2000

500

6

ES801650500

ES801650600

800

1600

500

7

ES801840500

ES801840600

800

1800

400

8

ES801850500

ES801850600

800

1800

500

9

ES802050500

ES802050600

800

2000

500

10

ES802060500

ES802060600

800

2000

600

11

ES101840500

ES101840600

1000

1800

400

12

ES121650500

ES121650600

1200

1600

500

13

ES121840500

ES121840600

1200

1800

400

14

ES122050500

ES122050600

1200

2000

500
