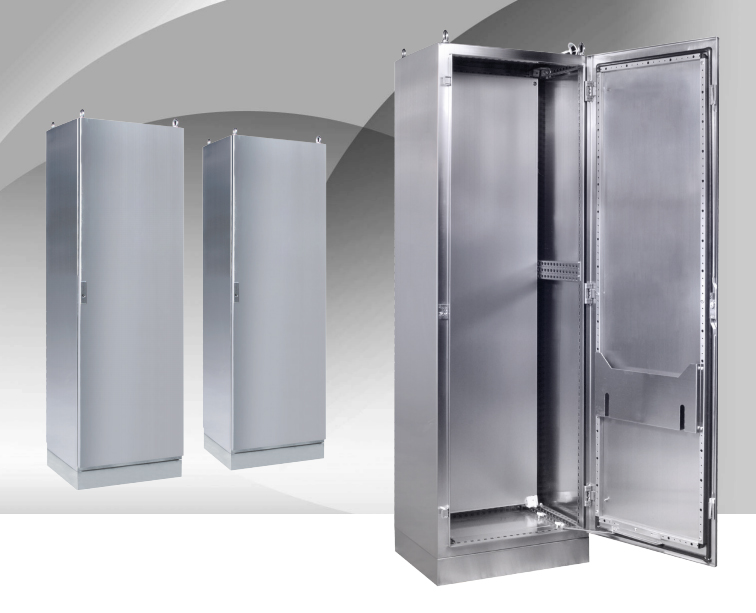

BES不锈钢控制柜

更新:2015/11/3 20:30:20      点击:
  • 品牌   扩杰
  • 型号   BES
  • 描述

    ...

产品介绍

产品特点 Features of product
● 独立式电柜,不适宜并柜使用
● 门板离地面高,约25mm,确保开门灵活顺畅
● 独特的五折型材整体焊接而成的主体框架不但确保柜体的高强度而且确保柜体的防护等级达到IP56
●  特殊的门板方管加强系统可以用螺丝固定在门板上,便于拆卸
● 框架上密布的25mm 间距模数孔确保安装的灵活性、通用性
● 镀锌安装板可以利用塑料滑块通过导轨从正面推入柜内,且两边有U型折边使安装板更牢固和更便于搬运

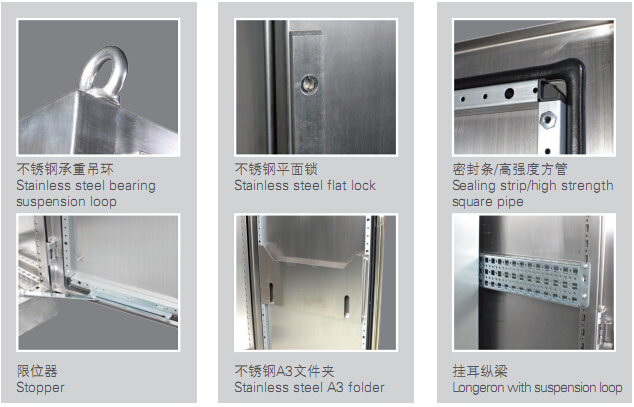

● 专业的不锈钢岔道锁、不锈钢承重吊环以及各种功能性的附件彰显柜体豪华品质
● Stand-alone electric cabinet, unsuitable for combination
● Ground clearance of door plate is sufficient, about 25mm, ensuring flexibility and smoothness of door opening.
●  IP56The main body  frame specially  fabricated by  five-fold section  through whole welding ensures not only high strength but also the Protection grade of IP56.
● Special door plate square pipe  reinforcement system can be fixed on the door plate with screws, easy for dismantlement.
● Module holes densely distributed at 25mm spacing on  the frame guarantee flexibility and universality of installation
● The mounting plate can be pushed  into  the cabinet  from  the  front through guide  rail by making use of plastic sliders. U-shape  folded edges at  the  two sides  facilitate  fastening and handling of  the mounting plate.
● Professional stainless steel  turnoff  lock, stainless steel bearing suspension  loops and other accessories having various  functions bring out luxury character of cabinet body.


序号

订货号(不锈钢304)

宽度(mm)

高度(mm)

深度(mm)

1

BES601640304

600

1600

400

2

BES601650304

600

1600

500

3

BES601840304

600

1800

400

4

BES601850304

600

1800

500

5

BES602050304

600

2000

500

6

BES801650304

800

1600

500

7

BES801840304

800

1800

400

8

BES801850304

800

1800

500

9

BES802050304

800

2000

500

10

BES802060304

800

2000

600

11

BES101840304

1000

1800

400

12

BES121650304

1200

1600

500

13

BES121840304

1200

1800

400

14

BES122050304

1200

2000

500
