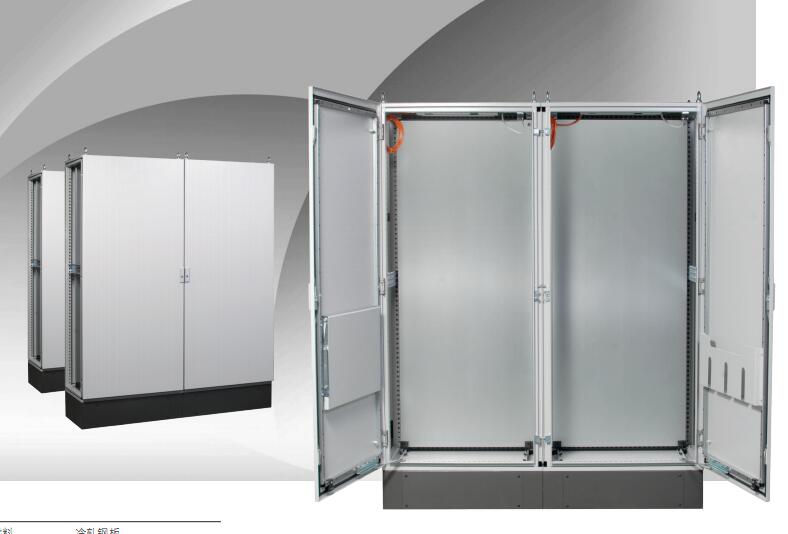

PS控制柜

更新:2015/11/3 20:37:21      点击:
  • 品牌   扩杰
  • 型号   PS
  • 描述

    ...

产品介绍

产品特点 Features of product
● 组合式电柜,适宜并柜使用
● 顶板可以移去,侧板可以拆卸,更易于工作的便捷性
● 门板离地面高,约25mm,确保开门灵活顺畅

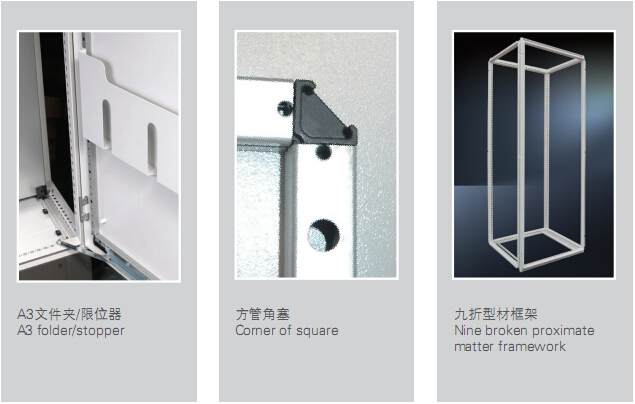

● 独特的九折型材整体焊接而成的主体框架不但确保柜体的高强度而且使柜体的防护等级达到IP54
● 特殊的门板方管加强系统可以用螺丝固定在门板上,便于拆卸
● 框架上密布的25mm 间距模数孔确保安装的灵活性、通用性
● 镀锌安装板可以利用塑料滑块通过导轨从正面推入柜内,且两边有U型折边使安装板更牢固和更便于搬运
● Combined electric cabinet, suitable for combination
● The  top plate  is  removable and  the side plate  is demountable, making work easier and simpler
● Ground clearance of door plate is sufficient, about 25mm, ensuring flexibility and smoothness of door opening.
● IP54The main body  frame specially made of nine-fold section by means of whole welding not only ensures high strength of cabinet body but also lets the protection grade of cabinet body reach IP54.
● Special door plate square pipe reinforcement system can be fixed on the door plate with screws, easy for dismantlement.
● Module holes densely distributed at 25mm spacing on  the  frame guarantee the flexibility and universality of installation
● The mounting plate can be pushed into the cabinet from the front through guide rail by making use of plastic sliders. U-shape folded edges at  the  two sides  facilitate  fastening and handling of  the mounting plate.


序号

订货号
(RAL 7035)

订货号
(RAL 7032)

侧板订货号
(RAL 7035)

侧板订货号
(RAL 7032)

宽度
(mm)

高度
(mm)

深度
(mm)

1

PS601840500

PS601840600

PS1840500

PS1840600

600

1800

400

2

PS601850500

PS601850600

PS1850500

PS1850600

600

1800

500

3

PS601860500

PS601860600

PS1860500

PS1860600

600

1800

600

4

PS602040500

PS602040600

PS2040500

PS2040600

600

2000

400

5

PS602050500

PS602050600

PS2050500

PS2050600

600

2000

500

6

PS602060500

PS602060600

PS2060500

PS2060600

600

2000

600

7

PS602080500

PS602080600

PS2080500

PS2080600

600

2000

800

8

PS602260500

PS602260600

PS2260500

PS2260600

600

2200

600

9

PS801840500

PS801840600

PS1840500

PS1840600

800

1800

400

10

PS801850500

PS801850600

PS1850500

PS1850600

800

1800

500

11

PS801860500

PS801860600

PS1860500

PS1860600

800

1800

600

12

PS802040500

PS802040600

PS2040500

PS2040600

800

2000

400

13

PS802050500

PS802050600

PS2050500

PS2050600

800

2000

500

14

PS802060500

PS802060600

PS2060500

PS2060600

800

2000

600

15

PS802080500

PS802080600

PS2080500

PS2080600

800

2000

800

16

PS802260500

PS802260600

PS2260500

PS2260600

800

2200

600

17

PS101840500

PS101840600

PS1840500

PS1840600

1000

1800

400

18

PS121840500

PS121840600

PS1840500

PS1840600

1200

1800

400

19

PS121850500

PS121850600

PS1850500

PS1850600

1200

1800

500

20

PS121860500

PS121860600

PS1860500

PS1860600

1200

1800

600

21

PS122040500

PS122040600

PS2040500

PS2040600

1200

2000

400

22

PS122050500

PS122050600

PS2050500

PS2050600

1200

2000

500

23

PS122060500

PS122060600

PS2060500

PS2060600

1200

2000

600

24

PS122080500

PS122080600

PS2080500

PS2080600

1200

2000

800

25

PS122260500

PS122060600

PS2260500

PS2260600

1200

2200

600

26

PS102050500

PS102050600

PS2050500

PS2050600

1000

2000

500

27

PS102060500

PS102060600

PS2060500

PS2060600

1000

2000

600
