BPS不锈钢控制柜

更新:2015/11/3 20:40:37      点击:
  • 品牌   扩杰
  • 型号   BPS
  • 描述

    ...

产品介绍

产品特点 Features of product
● 组合式电柜,适宜并柜使用
● 顶板可以移去,侧板可以脱卸,更易于工作的便捷性
● 门板离地面高,约25mm,确保开门灵活顺畅

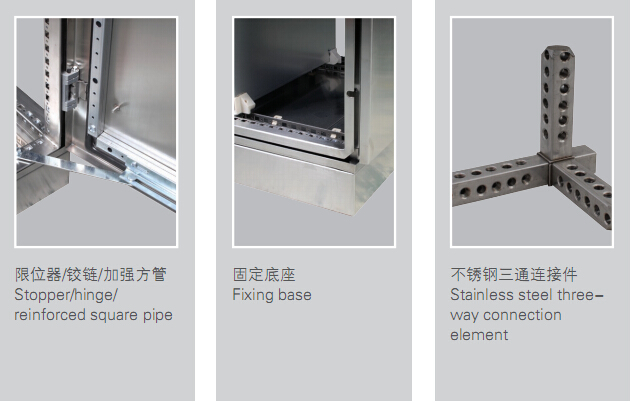

● 独特的九折型材配合高强度的不锈钢三通连接件焊接而成的主体框架确保柜体的高强度
● 特殊的门板方管加强系统可以用螺丝固定在门板上,便于拆卸
● 框架上密布的25mm 间距模数孔确保安装的灵活性、通用性
● 镀锌安装板可以利用塑料滑块通过导轨从正面推入柜内,且两边有U型折边使安装板更牢固和更便于搬运
● 专业的不锈钢岔道锁、不锈钢承重吊环以及各种功能性的附件彰显柜体豪华品质
● Combined electric cabinet, suitable for combination
● The  top plate  is  removable and  the side plate  is demountable, making work easier and simpler
● Ground clearance of door plate is sufficient, about 25mm, ensuring flexibility and smoothness of door opening.
● The main body  frame specially made of nine-fold section and high-strength stainless steel  three-way connection elements through welding ensures high strength of cabinet body.
● Special door plate square pipe reinforcement system can be fixed on the door plate with screws, easy for dismantlement.
● Module holes densely distributed at 25mm spacing on  the  frame guarantee the flexibility and universality of installation
● The mounting plate can be pushed into the cabinet from the front through guide rail by making use of plastic sliders. U-shape folded edges at  the  two sides  facilitate  fastening and handling of  the mounting plate.
● Professional stainless steel  turnoff  lock, stainless steel bearing suspension loops and other accessories of various functions bring out luxury character of cabinet body.



序号

订货号
(不锈钢304)

侧板订货号
(不锈钢304)

宽度
(mm)

高度
(mm)

深度
(mm)

1

BPS601840304

BPS1840304

600

1800

400

2

BPS601850304

BPS1850304

600

1800

500

3

BPS601860304

BPS1860304

600

1800

600

4

BPS602040304

BPS2040304

600

2000

400

5

BPS602050304

BPS2050304

600

2000

500

6

BPS602060304

BPS2060304

600

2000

600

7

BPS602080304

BPS2080304

600

2000

800

8

BPS602260304

BPS2260304

600

2200

600

9

BPS801840304

BKP1840304

800

1800

400

10

BPS801850304

BPS1850304

800

1800

500

11

BPS801860304

BPS1860304

800

1800

600

12

BPS802040304

BPS2040304

800

2000

400

13

BPS802050304

BPS2050304

800

2000

500

14

BPS802060304

BPS2060304

800

2000

600

15

BPS802080304

BPS2080304

800

2000

800

16

BPS802260304

BPS2260304

800

2200

600

17

BPS101840304

BPS1840304

1000

1800

400

18

BPS121840304

BPS1840304

1200

1800

400

19

BPS121850304

BPS1850304

1200

1800

500

20

BPS121860304

BPS1860304

1200

1800

600

21

BPS122040304

BPS2040304

1200

2000

400

22

BPS122050304

BPS2050304

1200

2000

500

23

BPS122060304

BPS2060304

1200

2000

600

24

BPS122080304

BPS2080304

1200

2000

800

25

BPS122260304

BPS2260304

1200

2200

600

26

BPS102050304

BPS2050304

1000

2000

500

27

BPS102060304

BPS2060304

1000

2000

600
