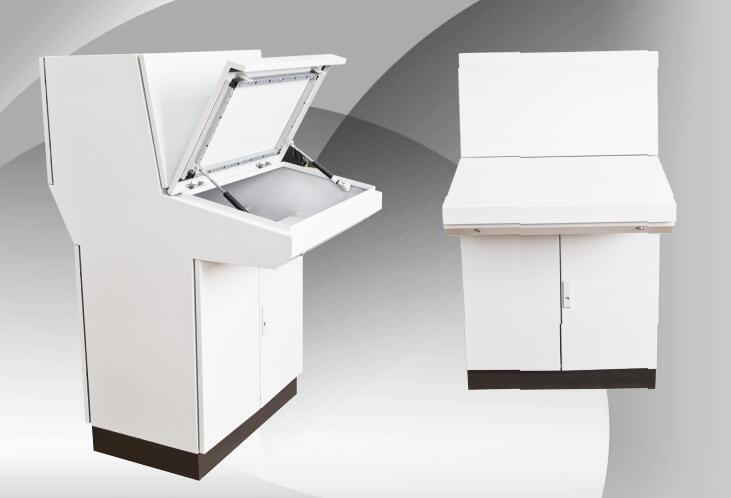

APSD三段操作台

更新:2015/11/3 18:26:09      点击:
  • 品牌   扩杰
  • 型号
  • 描述

    可以根据用户实际使用情况定制尺寸...

产品介绍

产品特点 Features of products
● 独特的外形结构设计彰显台体的豪华品质
● 三段式台体均可拆卸并可独立使用

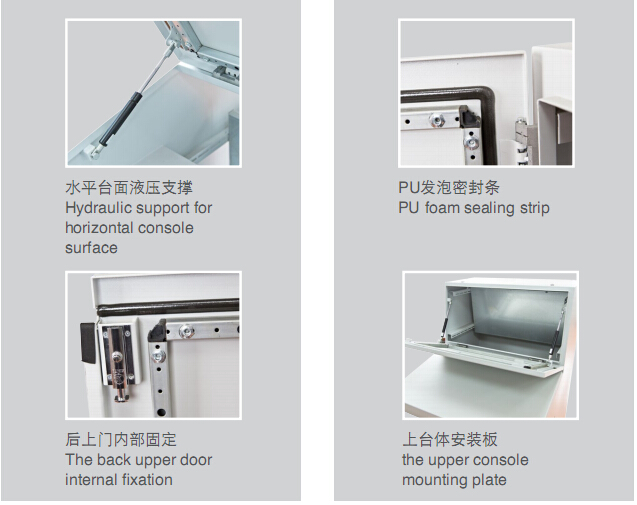

● A、B操作面板,后显示器盖板,前后单(双)门均可打开并配以豪华液压支撑以及高强度拉杆的使用体现了台体的人性化设计及安装的便利性
● 前后单(双)门离地面高,约为25mm,确保开门的顺畅和便利
● 具体三段台体结构尺寸详见图纸
● Unique appearance and structure design embodies luxury character of console body.
● The three sections of console body are dismountable and can be used independently.
● A and B operating panels, back display cover plate and front and back single (dual) doors can be opened and fixed with luxury hydraulic supports and high-strength draw bars,embodying humanized design and installation convenience.
● Ground clearance of front and back single (dual) doors is sufficient, about 25mm, ensuring smoothness and convenience of door opening.
● Specific three-section console structural dimension is detailed in drawing.


序号

订货号(RAL 7035)

订货号(RAL 7032)

宽度(mm)

高度(mm)

深度(mm)

1

APSD60135500

APSD60135600

600

1300

500

2

APSD80135500

APSD80135600

800

1300

500

3

APSD10135500

APSD10135600

1000

1300

500

4

APSD12135500

APSD12135600

1200

1300

500
