BAE不锈钢控制箱

更新:2015/11/3 20:12:19      点击:
  • 品牌   扩杰
  • 型号   BAE
  • 描述

    ...

产品介绍

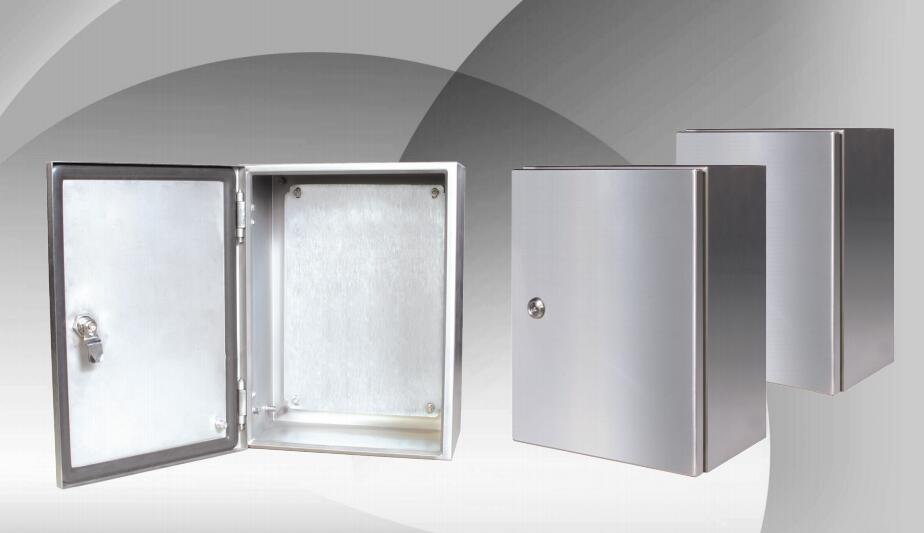

BAE不锈钢挂壁控制箱

产品特点 Features of products
● PU发泡密封条确保箱体达到IP56的防护等级
● 镀锌安装板也可在箱体外做布线用
● 箱口多层保护槽不但起加固作用而且能防止门板打开时脏物和水进入箱内
● 专用的带双齿锁芯SUS304材质的不锈钢锁系统彰显档次,确保通用性
● 表面拉丝处理(高档箱体内部可做喷砂处理)
● PU foaming sealing strip ensures a protection grade of IP56 to box body

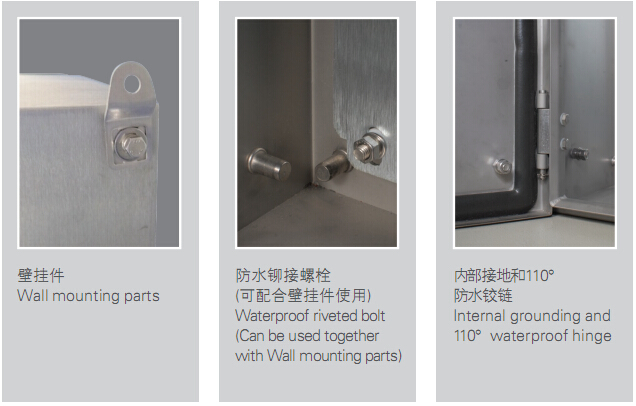

● Galvanized mounting plate can also be used for wiring outside the box
● Multiple protection grooves are designed at  the box opening can not only reinforce the structure but also prevent the entry of dirt or water when the door is opened
● Special SUS304 stainless steel lock system with double-teeth cylinder shows high quality and ensures universality
● Surface wire drawing  treatment  (sand blasting  is available  in high-class box)


序号

订货号(不锈钢304)

宽度(mm)

高度(mm)

深度(mm)

1

BAE203012304

200

300

120

2

BAE203021304

200

300

210

3

BAE304021304

300

400

210

4

BAE383021304

380

300

210

5

BAE383821304

380

380

210

6

BAE405021304

400

500

210

7

BAE386021304

380

600

210

8

BAE505021304

500

500

210

9

BAE606021304

600

600

210

10

BAE607621304

600

760

210

11

BAE607635304

600

760

350



BAE不锈钢立式控制箱

产品特点 Features of products
● PU发泡密封条确保箱体达到IP56的防护等级
● 镀锌安装板也可在箱体外做布线用
● 箱口多层保护槽不但起加固作用而且能防止门板打开时脏物和水进入箱内
● 专用的带双齿锁芯SUS304材质的不锈钢锁系统彰显档次,确保通用性
● 表面拉丝处理(高档箱体内部可做喷砂处理)
● 带折边的安装板和安装板支架最大限度的确保安装强度
● PU foaming sealing strip ensures a protection grade of IP56 to box body
● Galvanized mounting plate can also be used for wiring outside the box
● Multiple protection grooves are designed at the box opening can not only reinforce the structure but also prevent the entry of dirt or water when the door is opened
● Special SUS304 stainless steel lock system with double-teeth cylinder shows high quality and ensures universality
● Surface wire drawing treatment  (sand blasting  is available  in high-class box)
● Mounting plate and supporting  rack with  flanges ensures  the max. mounting strength


序号

订货号(不锈钢304)

宽度(mm)

高度(mm)

深度(mm)

1

BAE608025304

600

800

250

2

BAE609030304

600

900

300

3

BAE801030304

800

1000

300

4

BAE601230304

600

1200

300
