控制箱支架

更新:2015/11/2 19:09:36      点击:
  • 品牌   扩杰
  • 型号
  • 描述

    控制箱支架...

产品介绍

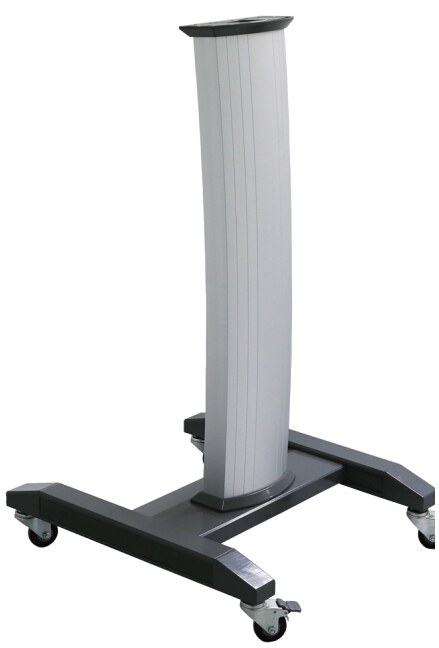

       控制箱支架由高品质阳极氧化铝型材和铝压铸部件构成。
外观设计简洁,结构轻盈稳固。立柱部分表面阳极氧化处理,与控制箱体浑然一体,前凸弧度设计形成的向后7度仰角更符合人体工程学原理。底盘部分采用表面深灰色喷塑工艺,符合工业场合需求。

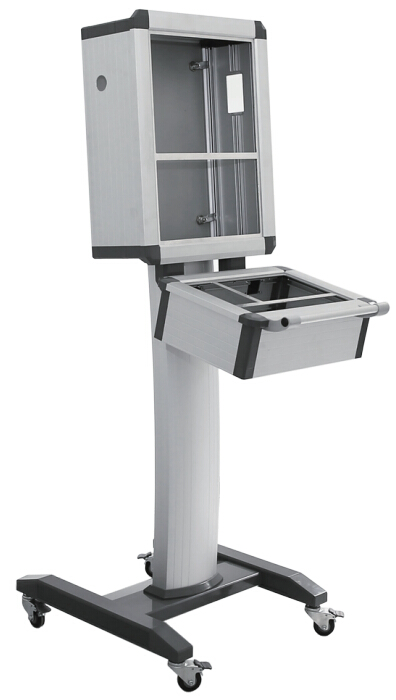

       该支架可配合CP190/140系列及其他型号的控制箱体。底盘脚轮或支撑底脚为选配件,可按需要另行订购。

The control cabinet stand is made of the high quality of anodized aluminum and aluminum die casting parts.

Appearance design is concise, structure is light and solid. Column part surface is for the anodic oxidation treatment, combined with the control cabinet in one integrated mass, lordosis radian design form back 7 degrees elevation is more accord with ergonomics principle. Dark gray surface coating technology on chassis parts, which meets the demand of industrial occasions.

The stands can cooperate with the series of CP190/140 and other models of control cabinet. Chassis castor or support foot is optional, can be ordered separately as requirements.



基本性能及参数:
外形尺寸(不含脚轮或支撑底脚):
      高x宽x深:1018mmx600mmx650mm
材料:
      立柱型材:铝合金6063
      立柱两端盖:压铸铝合金102
      底盘框架型材:铝合金6063
      底盘角部件:压铸铝合金102
      底盘两侧压条:PE
颜色:

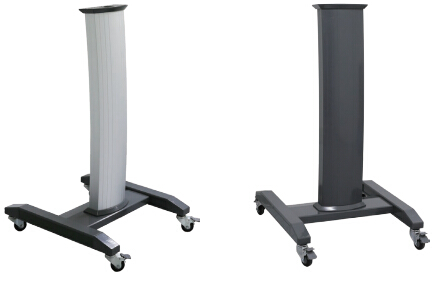

      立柱:阳极氧化铝本色或喷塑岩石灰色
      立柱两端盖:喷塑,岩石灰,近似RAL7012
      底盘框架:喷塑,岩石灰,近似RAL7012
      底盘角部件:喷塑,岩石灰,近似RAL7012

Basic performance and parameters
Dimensions (without casters or support feet):
             Height x width x depth: 1018mmx600mmx650mm
Materials:
             Column profiles: Aluminum 6063
             Column ends of the cover: die-cast aluminum alloy 102
             Chassis frame profiles: Aluminum 6063
             Chassis horn parts: Die-cast aluminum 102
             Chassis sides layering: PE
Color:
             Column: anodized aluminum natural or spray gray rock
             Column ends of the cover: plastic, gray rocks, similar to RAL7012
             Chassis frame: plastic, gray rocks, similar to RAL7012
             Chassis angle components: spray, gray rocks, similar to RAL7012


订货号:
             支架:      ZJ092000(阳极氧化立柱)
             支架:      ZJ092001(钢灰喷塑立柱)
             带刹车脚轮:JL092910    4个/套
             支撑底脚:  JL092911    4个/套
