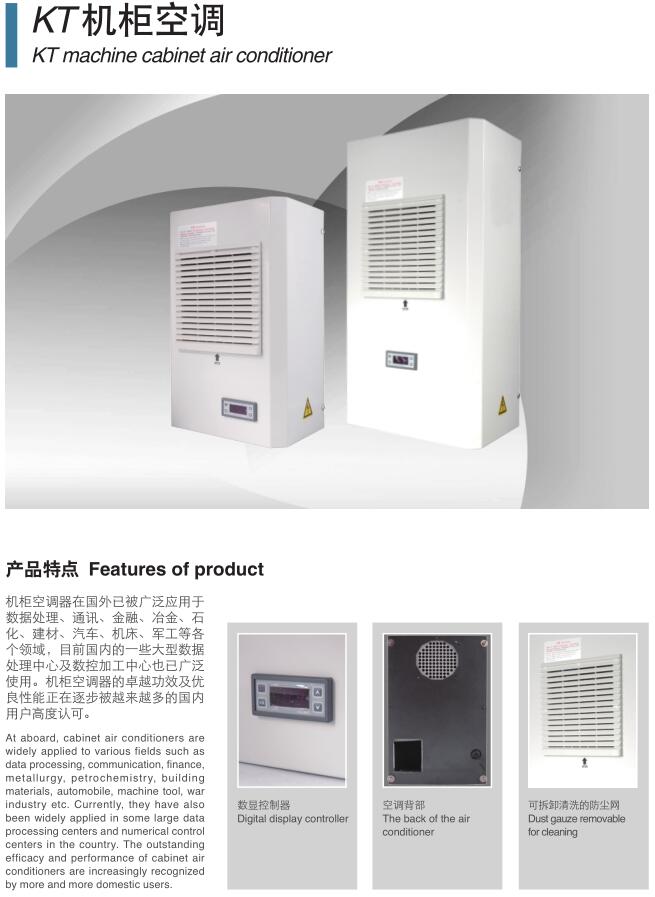

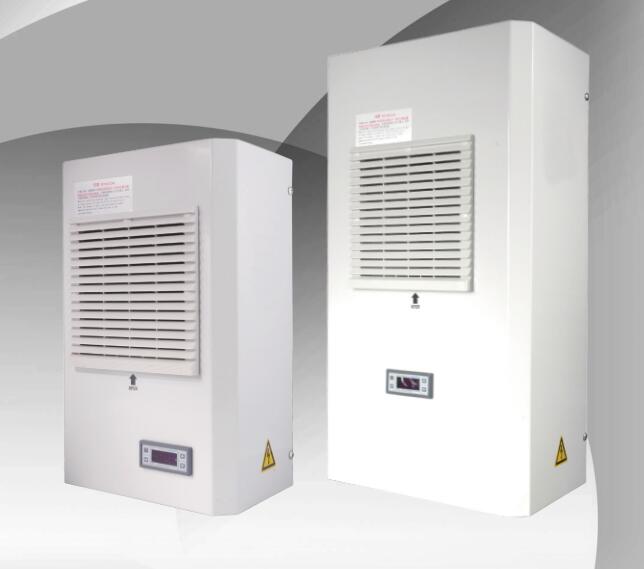

机柜空调

更新:2015/11/1 19:33:30      点击:
  • 品牌   扩杰
  • 型号
  • 描述

    可以根据用户实际使用情况定制...

产品介绍

可以根据用户实际使用情况定制


产品特点:
控制柜内部元器件密集、发热量大,由于散热不良、升温过高而导致的系统故障相当普遍。传统的冷却方式是风扇直接降温,散热效果差。机柜空调,可有效降低控制柜内部温度,并能阻止灰尘、湿气及腐蚀性气体进入控制柜内部,适用于可靠性要求较高的电气控制柜、计算机(服务器)机柜的温、湿度控制,是电控系统可靠工作的有力保障。

Features of product:
The elements in the control cabinet are dense and have a large heating value. System failure is very common due to bad heat dissipation and high temperature rise. The traditional cooling
method is to directly reduce temperature with a fan, which has a poor heat dissipation effect. The cabinet air conditioner can effectively reduce temperature in the control cabinet and prevent dust, moisture and corrosive gases from entering the control cabinet. The air conditioner is used for control on temperature and humidity of electrical control cabinets and computer (server) cabinets with high reliability requirements to ensure reliable operation of an electrical control system.


KT机柜空调系列产品规格
KT cabinet air-conditioning products specifications

订货号
Order No.

KT300

KT450

KT600

KT800

KT1000

KT1500

KT2000

KT2500

KT3200

工作电压
Operating Voltage

220VAC 50/60Hz ±10%

外形尺寸
Dimensions
WxHxD (mm)

286x445
x170

286x500 x170

350x630
x200

350x630
x200

360x670
x230

370x855
x230

390x
1010
x230


435x
1090
x230

436x 113
x270

制冷量
Cooling capacity

300W

450W

600W

800W

1000W

1500W

2000W

2500W

3200W

运行电流
Operating current

1.2A

1.5A

2.1A

2.3A

3.9A

4.0A

5.0A

6.3A

7.3A

制冷剂
Refrigerant

R134a

工作温度范围
Operating
temperature range

制冷工作温度(Cooling Temperature):+20~+55度
(备注:KT1000,制冷工作温度+20~+50度).

噪音 Noise

55dB

55dB

60dB

60dB

65dB

65dB

65dB

65dB

65dB

重量 Weight

15Kg

16Kg

24Kg

25Kg

31Kg

39Kg

47Kg

52kg

64kg

外观颜色
Exterior Color

RAL7035

循环风量:外循环
Flow Rate:
the outer loop

150m³/h

230m³/h

290m³/h

340m³/h

300m³/h

780m³/h

810m³/h

840m³/h

1150m³/h

循环风量:内循环
Flow Rate:
inner loop

70m³/h

120m³/h

230m³/h

230m³/h

180m³/h

270m³/h

320m³/h

410m³/h

610m³/h

测试工况:电柜内侧干球温度:35℃,湿球温度:26℃,电柜外侧干球温度:35℃
Test conditions: electrical cabinet inside of the dry bulb temperature: 35 ℃, wet bulb temperature: 26 ℃, power outside of the cabinet dry bulb temperature: 35℃
